Balboa VL400 Panel 55130

£124.99

Description

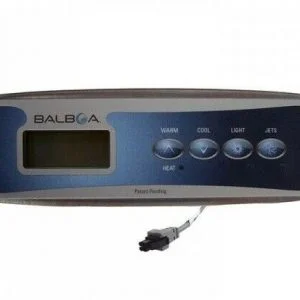

Balboa VL400 Panel, topside control touchpad S/N 55130.

The VL400 is part of Balboa’s VL Duplex range & comes complete with a telephone cord style connector. It is designed to work with Global Series (GS) Series hot tub control systems. The sleek panels have LCD displays that have moving function indicator icons, maintenance reminders, and service alerts on the easy-to-read screen.

For identification the rear panel may have the s/n 55130 on a label. This label will be on the underside of your existing panel.

Dimensions:

Width: 191mm (7.5″)
Height: 58.5mm (2.3″)

Button Configuration:

Lights + Temp + Jets + Aux – S/N 11822 Overlay Comes as standard.
Other options are as below:
Blower + Jets + Temp + Light – S/N 11888.

If your button configuration differs from the standard just let us know and we will supply the correct overlay configuration.

Used With:

It fits GS500, 500Z, 501, 501Z, Duplex Value system, M1 series.

Features:

LCD Displays
Large, easy-to-read displays
Reliable communication interface
Maintenance reminders & alerts
Water-resistant connectors

Duplex Topsides – Work with Packs & PCB’s with (Z) in the description, example (GS500Z).
Standard Topsides – Work with Packs & PCB’s with (SZ) in the description, example (GS510SZ).
Deluxe Topsides – Work with Packs & PCB’s with (DZ) in the description, example (GS523DZ).
ML Series Topsides – Work with Packs & PCB’s with (GL) in the description, example (GL2000).
TP Series Topsides – Work with Packs & PCB’s with (BP) in the description, example (BP2100).
